Ace

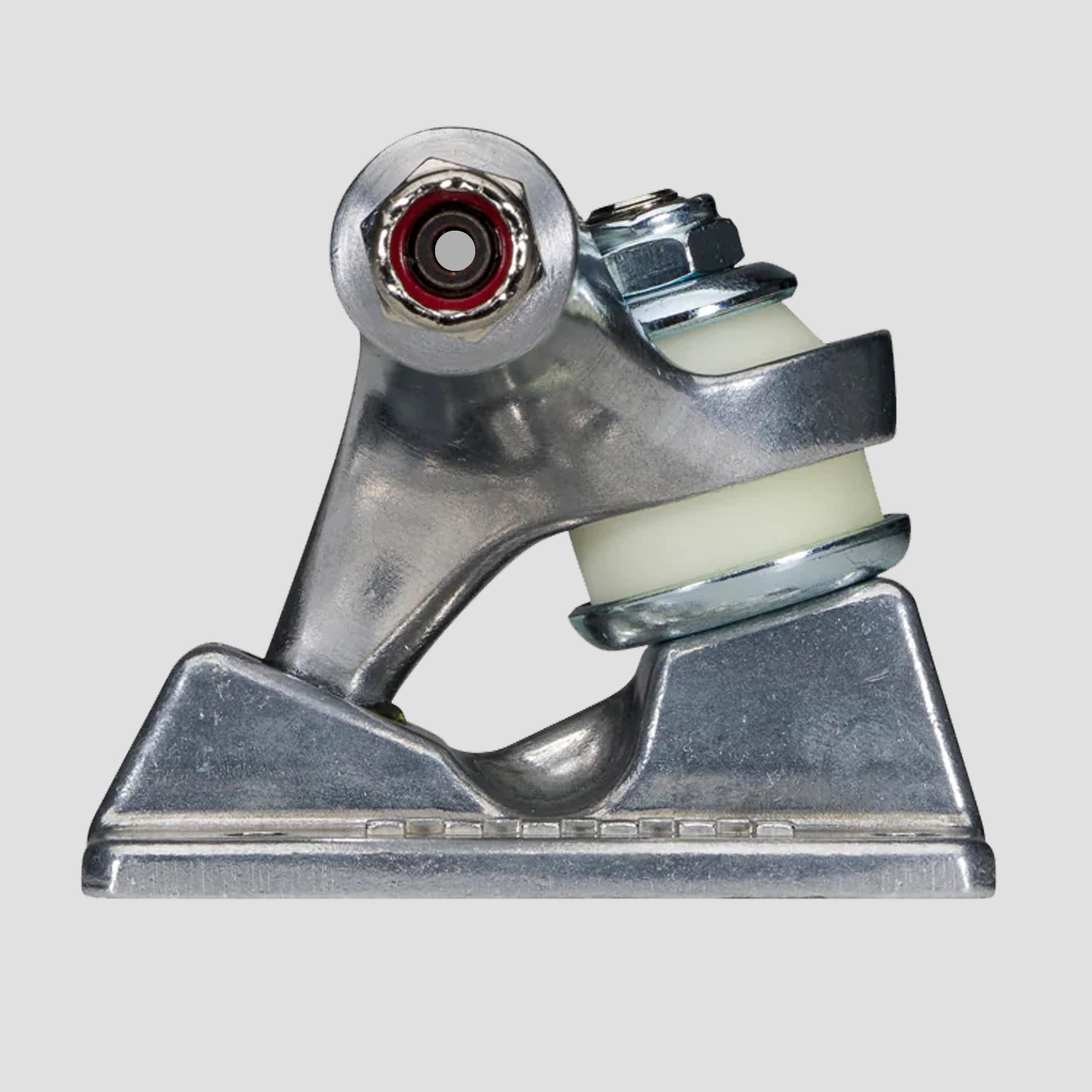

ACE AF1 Hollow 77 Skateboard Truck Polished Silver (Pair)
ACE AF1 Hollow 77 Skateboard Truck Polished Silver (Pair)
AF1 Hollow 77 Skateboard Truck Polished Silver (Pair)
The all-new ACE AF1 HOLLOWS features hollow axle and kingpin, making for the lightest AF1 to date. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminium’s structural integrity, making it the strongest cast truck on the market.
8.6% Lighter than standard AF1

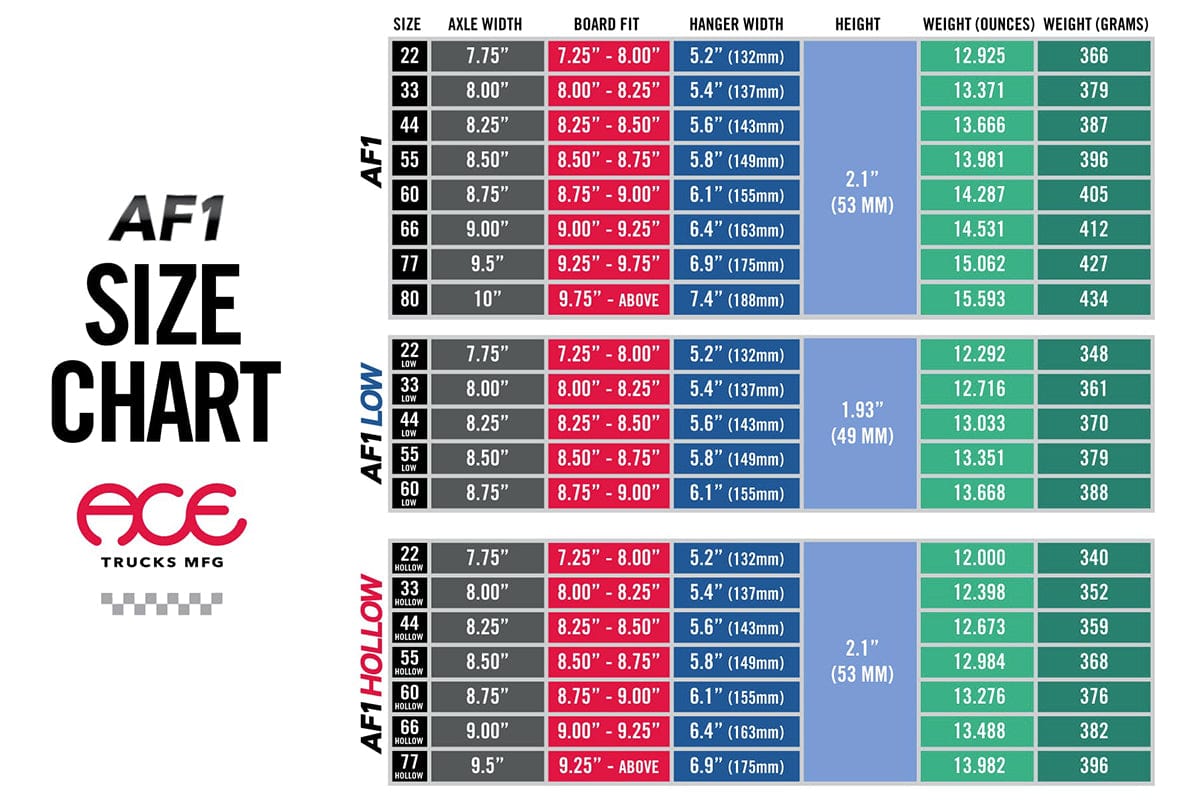

Hanger width: 6.9" (175mm)
Truck height: 2.1” (53mm)
Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
True T6 heat-treated baseplates and hangers
SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
Patent pending rethreading axle nuts - no more damaged axle ends!
Durable Hand-poured 96a urethane pivot bushings for better response.
Refined suspension for a cleaner turn.
Top Bushing: 12mm tall | 91a hardness
Bottom Bushing: Bottom 14mm tall | 86a hardness

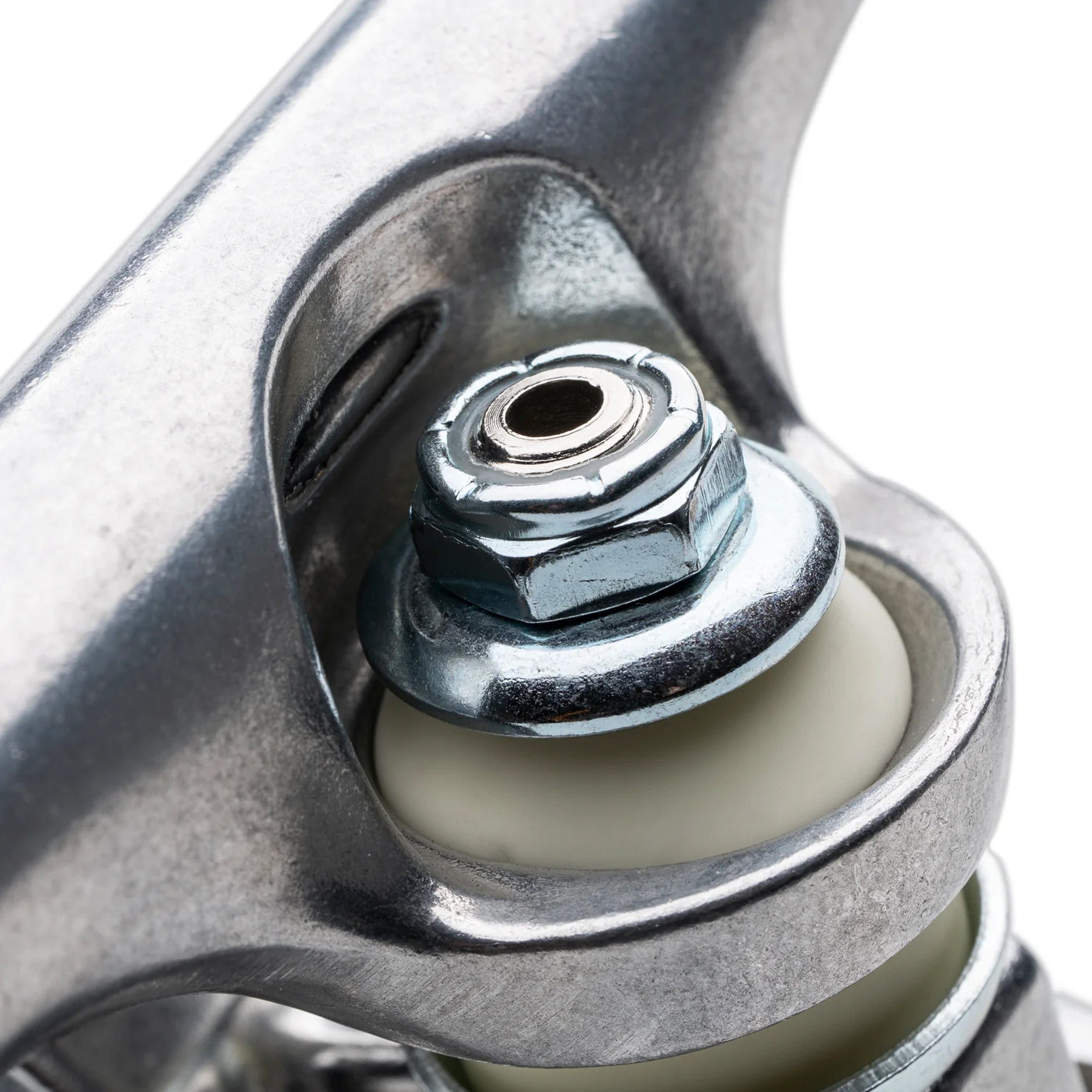

Machine-faced hanger ends for precise bearing contact.
